ODM LED Menu Board Boxes Light for Signage A1 24x48

led snap frame light boxes from LUZ with an even, shadow-free illumination across the entire light box surface without hot spots or shadows. The extreme brightness ensures posters, transparencies and backlit prints really stand out.

The functional single sided snap frame with energy saving illumination makes these ultra slim light boxes the perfect and quality display light box.

Item No :
AL1825-Single Side
Certification :
UL Listed (E523796), CE approved
Frame Thickness :
7/10 inch , 18mm
Frame Width :
9/10 inch , 25mm
Open / Close :
Snap open / close
LED :
One(1) edge, two(2) edges or four(4) edges
Color Temperature :
2400K-9000K, Dymanic White, RGB
Dimming :
By external dimmer (Optional)
Environment :
Suitable for indoor and dry location
Frame Color :
Anodized aluminum / Silver, Black and Customized
Mounting :
Wall mount by screws or own mounting clips

Inquiry now

product introduction

ODM LED Menu Board Boxes Light for Signage A1 24x48

Our slim led snap frame light box feature our high-quality LED light boards enclosed in flawlessly designed, 7/10 inch ,18mm-thick single sidealuminum snap frame. Add an highest brightness and uniformity backlight source to any printed image to attract more attention for your products.

Features for Snap Frame LED Light Boxes:

UL Listed (E523796), CE approved
Snap frame design for easy graphic changes, Single Sided
Ultra-slim aluminum frame (7/10 inch ,18mm in thickness)
Custom sizes
Color temperature available from 2700K to 9000K
Attached hardware for landscape or portrait mounting
Inout Voltage: 120VAC , Output Voltage: 12 Volt or 24 Volt DC
Highest uniformity and brightness
Much lower power consumption
104" power cord with 5.5 X 2.1mm Barrel Connector
Power Supply: UL class 2 or LPS or CE approved
Compatible with dimmer accessory if needed
Poster Included if needed

Single Sided Snap Frame LED Light Boxes:

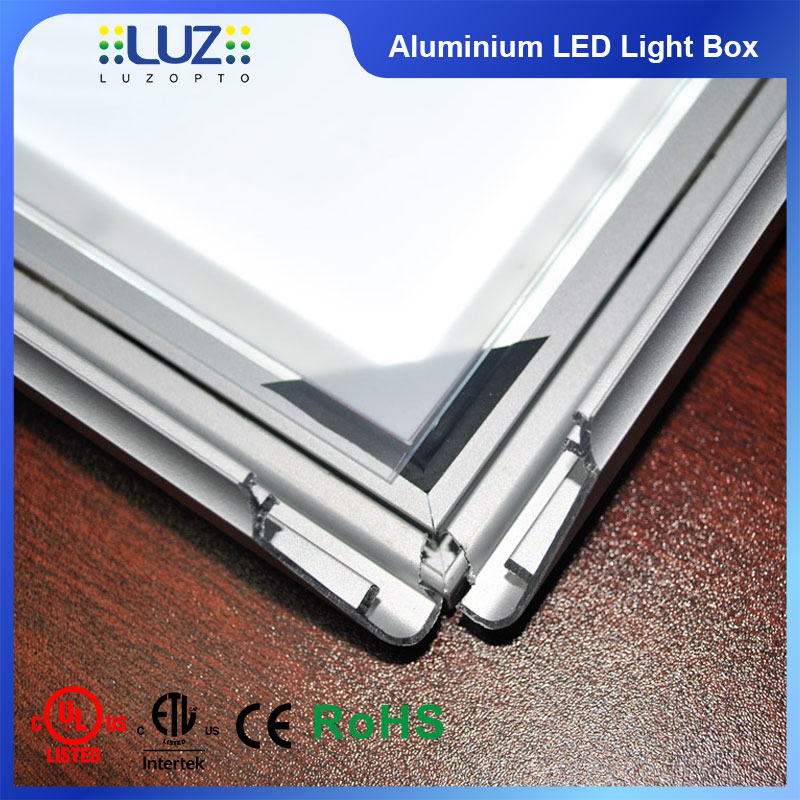

Corners	Snap Open & Close	Quick Graphic Change	Commercial Wall Mount

Details for Snap Frame LED Light Boxes:

Custom Size LED Snap Frames 13 Years' Factory Experience / OEM & ODM Accepted / UL/cUL Listed, CE Approval
Dimension (mm)	Dimension (in)	LED	Power Consumption (W)
A3 (297 x 420)	11.70 x 16.53	2 long sides	13.60
A2 (420 x 594)	16.53 x 23.38	2 long sides	19.24
A1 (594 x 841)	23.38 x 33.11	2 long sides	27.24
304 x 304	12 x 12	1 long side	9.84
406 x 507	16 x 20	2 long sides	16.42
457 x 609	18 x 24	2 long sides	19.73
507 x 609	20 x 24	2 long sides	19.73
558 x 711	22 x 28	2 long sides	23.03
609 x 609	24 x 24	2 long sides	19.73
609 x 914	24 x 36	2 long sides	29.61
609 x 1219	24 x 48	2 long sides	39.49
685 x 1015	27 x 40	2 long sides	32.88
761 x 1015	30 x 40	2 long sides	32.88
914 x 1219	36 x 48	2 long sides	39.49
914 x 1828	36 x 72	2 long sides	59.22
1219 x 2438	48 x 96	2 long sides	78.99

Product Application for Snap Frame LED Light Boxes:

Trade show displays
Movie Theater
Art gallery artistic display
Retail shop display and cases
Menu boards / new item advertisements
Interior design for hotels/office/restaurants
Display shelves and cabinets for cosmetic / jewelry
Edgir light source for wall/ceiling displays

Relative Products for Snap Frame LED Light Boxes:


Snap Frame	Fabric Frame	LED Acrylic Light Panel
UL/cUL, CE	ETL/cETL, CE	UL/cUL, UL/cUL, CE
22mm thick, Double-sided	30mm, Double-sided	9mm 10mm 12mm 14mm Thickness
